YUOUT YD-TSP210-D-5G is a multi-functional intelligent device with built-in front camera head and rear camera, and supports external HDMI signal source input. This device supports 5G+4G function, and can remotely view the live video of the staff in other regions or cities in the office/command center (for example, I am now in Shenzhen, China, and can view the re-scene video of the staff in Beijing, China), positioning information and call intercom. Install mobile SIM card, can also be used as a mobile phone, can make phone calls. The device is light, easy to carry, and can be hung on the chest and belt. Mainly used in public security patrol, traffic police, drone remote control HDMI output, DV camera and so on.

1. Integrated 5G single-soldier video transmission terminal device, with no assembly components except for the antenna, and built-in Beidou positioning system.
2. Supports 5G and 4G networks, with 1 built-in 4G all-network slot for 1 SIM card and 1 built-in 5G all-network slot for 1 SIM card.
3. Equipped with dual MIC microphones and a high-power speaker, and supports Bluetooth headphones.
4. Supports two-way intercom, group call, and Bluetooth intercom.
5. Built-in WiFi module and antenna supporting IEEE802.11 ac/a/b/g/n, 2.4G/5G. The WiFi can be set as a hotspot.
6. Dual-stream output, with independent settings for dual-stream parameters.

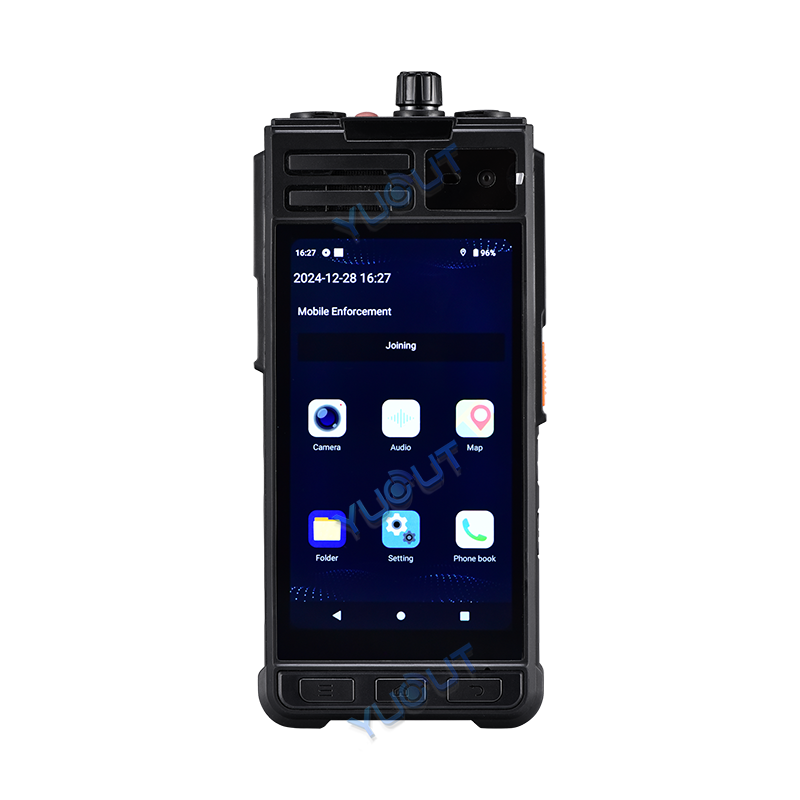

7. 4.7-inch full-view display, flat capacitive touch screen, resolution 1280*720, high-brightness sunlight-readable.
8. Operating system and CPU processor: Android 12, 8-core CPU, main frequency: 2.7GHz.

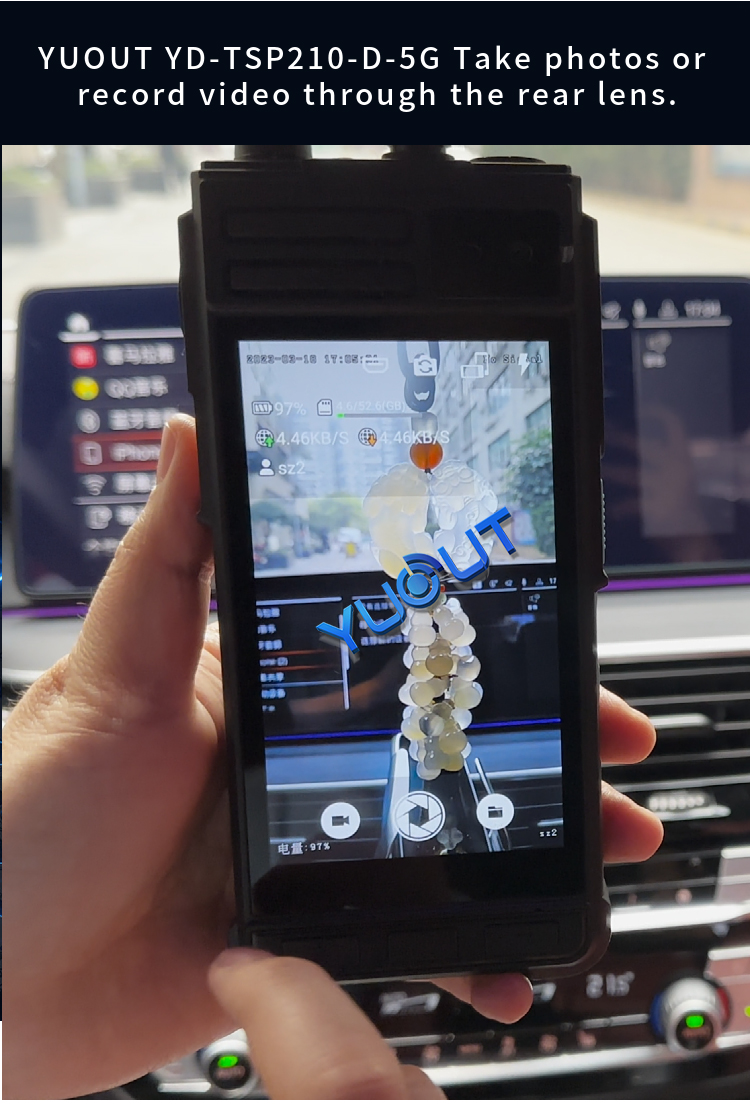

9. Video compression supports H.264/H.265. Under both compression formats, the main and secondary cameras have 16 million and 8 million pixels respectively, supporting 1080P/720P. The main camera's horizontal center resolution is ≥1300TVL, and the secondary camera's horizontal center resolution is ≥600TV. The frame rate is adjustable from 1 to 30 frames.
10. Shell protection grade ≥ IP68.
11. When the device is in standby mode, the original working state remains unchanged and data is not lost within 6 minutes of battery replacement.

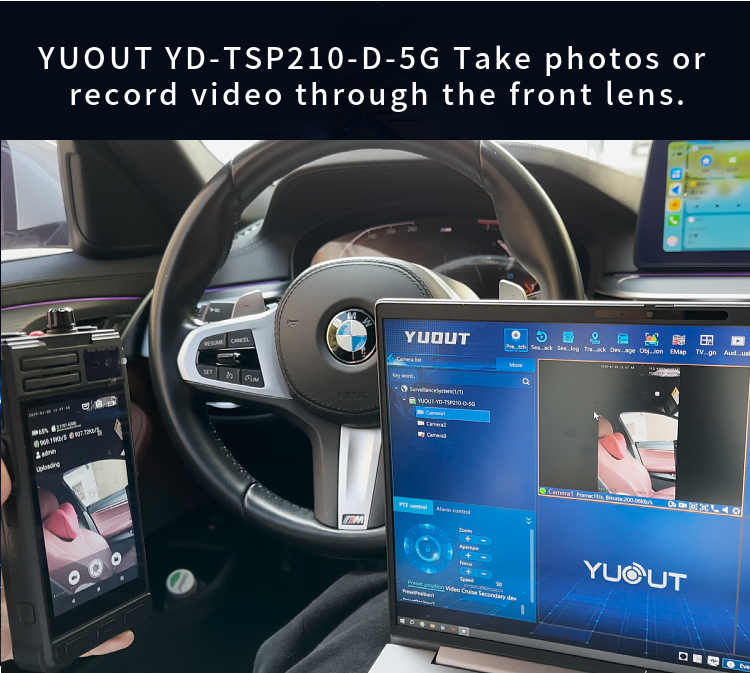

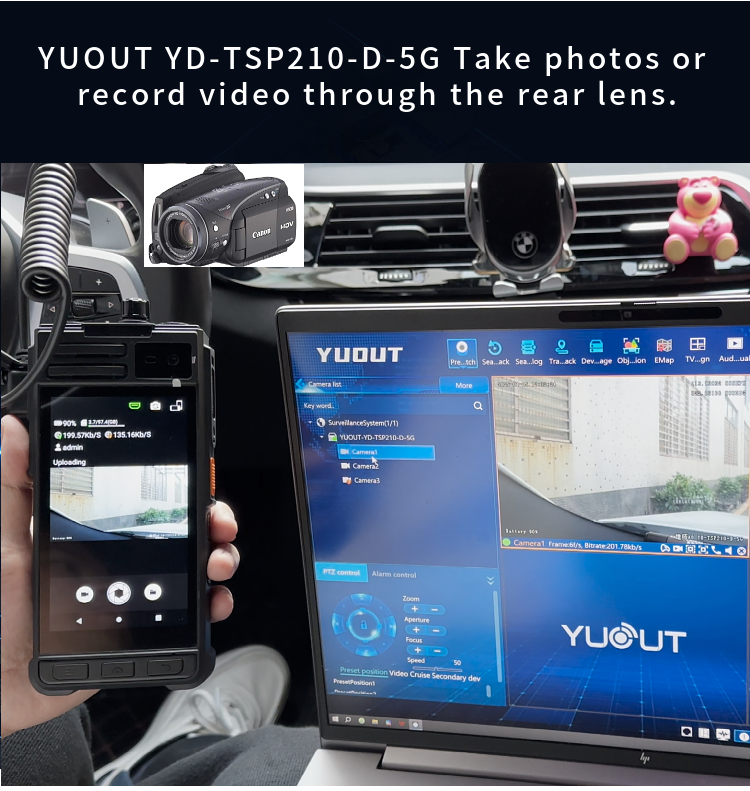

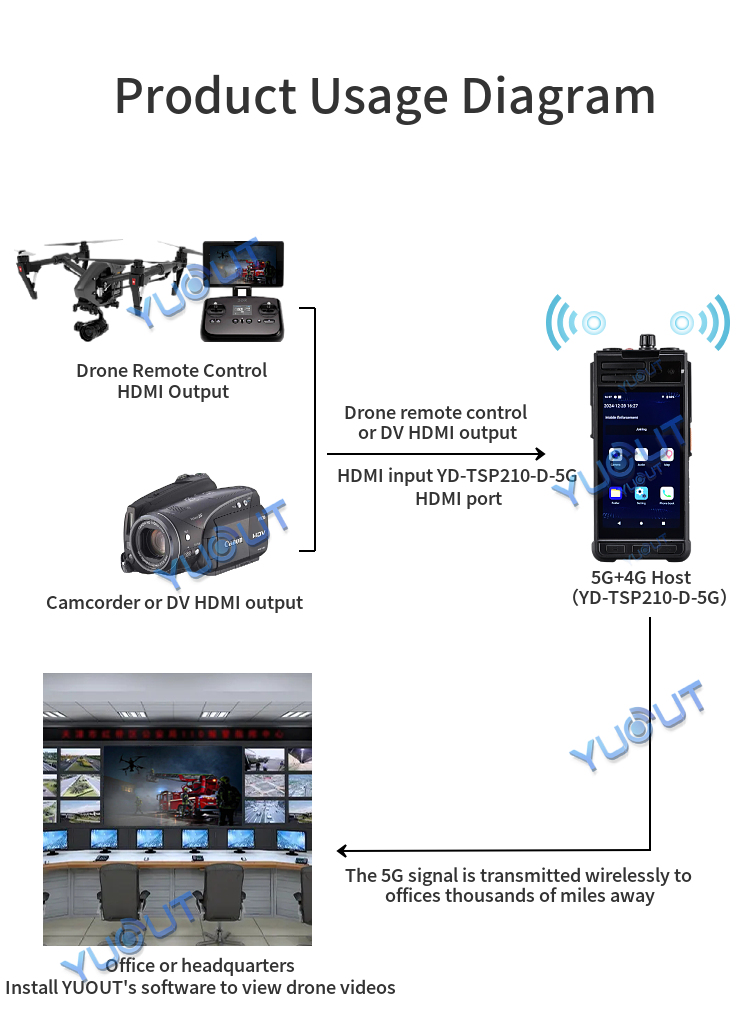

12. Supports input from built-in front and rear dual cameras, 1 HDMI high-definition signal source input, resolution support: ≥1920x1080, ≥1280x720, can be connected to drones or DV/cameras.
13. 2 TF card slots, dual TF card storage, maximum support 512GB.

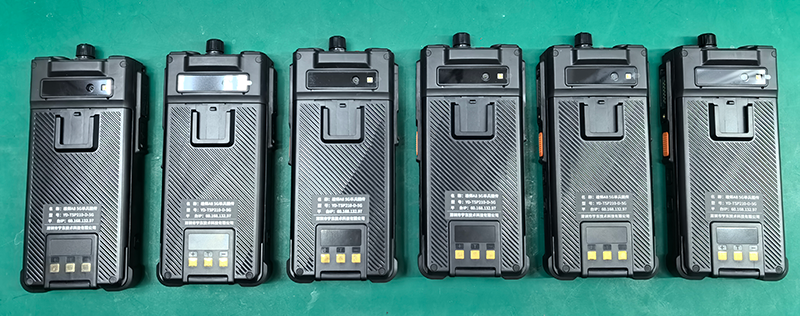

14. Equipped with a large-capacity detachable battery of 5900mAh, can work continuously for 6 hours, and standby for 72 hours.
15. Supports bare machine drop resistance. When the device is powered on, it can be dropped from a height of ≥2000mm on a cement floor on all 6 sides ≥2 times, and the device can still work normally.
16. Positioning system: single Beidou positioning.

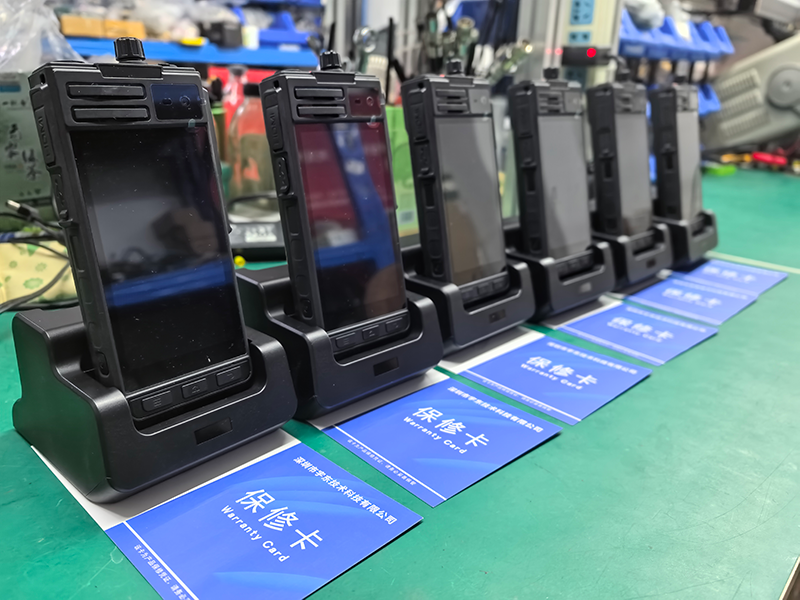

17. Standard desktop charging (gold-plated copper contacts), power supply: 220V, charging: 9V, can charge both the main unit and the battery simultaneously. Comes with a back clip and data cable.

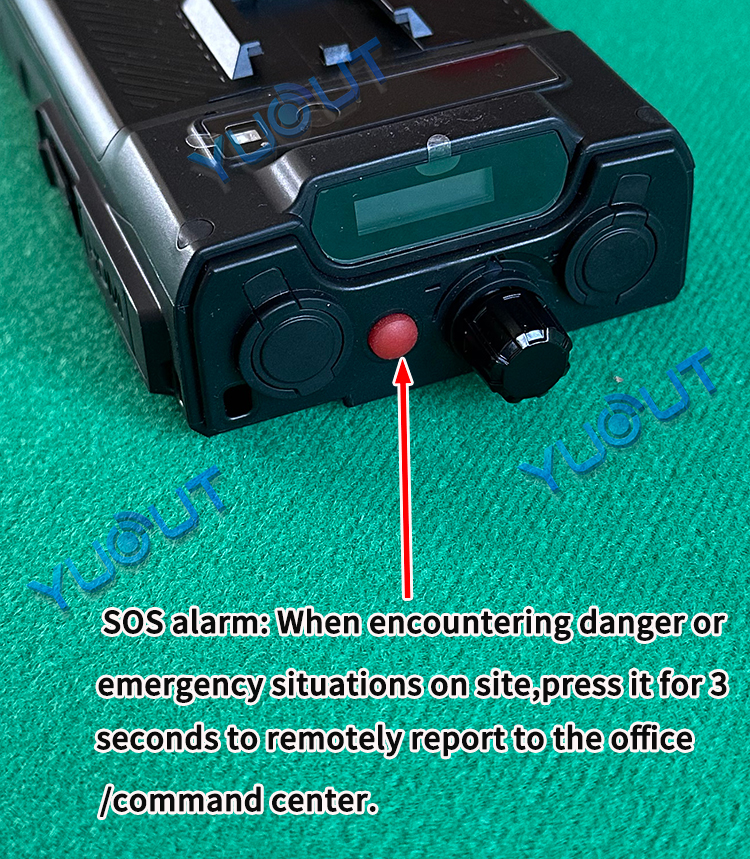

18. Keys for power on/off, rotation, menu, intercom, SOS, photo, video, etc.
19. Supports Yudong Technology emergency command and dispatch platform, and supports national standard GB28181.
20. Intelligent AI recognition system for face, license plate, safety helmet, mask, and smoking AI intelligent recognition.
21. Supports JPG/PNG format pictures, with the same resolution as video recording.
22. Dimensions: 180*80*35mm, weight: approximately 445g.

project		explain
system	operating system	Android12
Display	screen	4.7-inch high-definition screen，1280*720
video	Camera	Front lens: 800W pixels Rear lens: 1600W pixels
	Encode Algorithm	H.264、H.265
	Resolution	1080P、720P
	speaker	Built in speaker for intercom and shouting sound output
	Intercom	Support two-way voice intercom
storage	capacity	Can support two 512GB external TF storage devices
network	wireless	5G/4G
	WiFi	Built in WiFi module and antenna
	Bluetooth	Built in Bluetooth module and antenna
power supply	charge	TYPE-C Interface charging
power supply	Battery	5900mAh@4.2V
positioning	standard	GPS/BD
environment	operation temperature	-10℃~55℃
Dimension		1808035mm，≈445g

服務熱線：400-018-8825 研發中心：深圳市寶安區翠竹路華創達商務大廈3層生產一部：深圳市南山區西麗街道麻磡社區麻勘路37號AE-6層粵海街道事業部：深圳市南山區粵海街道濱海社區高新南十道81、83、85號深圳市軟件產業基地1棟1401-9

粵ICP備17100754號　　

5G Wireless Video HDMI Transmission

100m HDMI Wireless

神州A7 雙光譜熱成像布控球

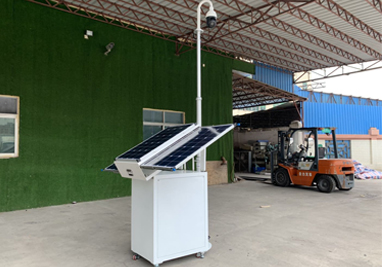

神盾X1PLUS 4G便攜式移動監控

雄師Q9 AI智能檢測布控球

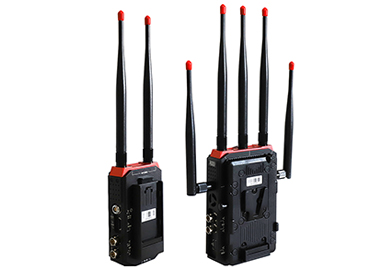

歐陸3000L無線圖傳

4G 單兵圖傳高清視頻終端系統 4G單卡單兵圖傳 4g單兵圖傳設備 4G單兵圖傳使用方法 4g單兵圖傳設備說明書 4g單兵圖傳設備參數

手持mesh無線傳輸裝置

車載云臺布控球云臺控制器

雷神2號圖傳實測1.4KM還有很強信號

無人機信號通過雷神3號傳到指揮部

國債應急通信裝備宇東技術產品中標99套 5G單兵圖傳各市縣級單位統一培訓現場

國債自然災害某應急廳使用宇東5G單兵圖傳應急救援

雷神3號無線圖傳應用于消防應急演練

中國南方電網使用宇東技術5G單兵圖傳YD-GB5030-5G平臺對接調試成功

寧夏某公安局使用宇東5G單兵圖傳日常出勤執行任務

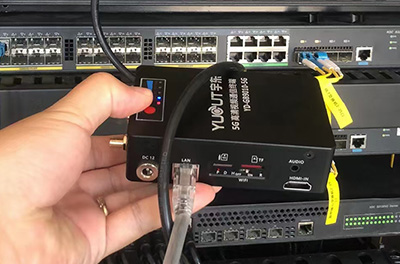

5G單兵圖傳國家電網 無人機電力巡檢
